ROS2-Python之消息的发布与订阅

发布者

# my_publisher_node.py

import rclpy
from rclpy.node import Node
from std_msgs.msg import String
import time


class MinimalPublisher(Node):
    def __init__(self):
        # my_publisher_node 是节点名字
        super().__init__('my_publisher_node')
        # topic是发布的主题名字
        self.publisher_ = self.create_publisher(String, 'topic', 10)
        timer_period = 1  # seconds
        self.timer = self.create_timer(timer_period, self.timer_callback)

    def timer_callback(self):
        msg = String()
        msg.data = 'Hello, ROS 2!' # 发布的消息
        self.publisher_.publish(msg)
        self.get_logger().info('Publishing: "%s"' % msg.data)


def main(args=None):
    rclpy.init(args=args)
    my_publisher_node = MinimalPublisher()

    try:
        rclpy.spin(my_publisher_node)
    except KeyboardInterrupt:
        pass
    finally:
        my_publisher_node.destroy_node()
        rclpy.shutdown()


if __name__ == '__main__':
    main()

订阅者

# my_subscriber_node.py

import rclpy
from rclpy.node import Node
from std_msgs.msg import String


class Subscriber(Node):
    def __init__(self):
        super().__init__("my_subscriber_node")
        self.subscriber = self.create_subscription(String,"topic",self.sub_callback,10)

    def sub_callback(self,msg):
        self.get_logger().info("I heard: %s" %msg.data)


def main(args=None):
    rclpy.init(args=args)
    node = Subscriber()
    rclpy.spin(node)
    rclpy.shutdown()


if __name__ == "__main__":
    main()

修改setup.py，添加节点

from setuptools import find_packages, setup

package_name = 'robotpy'

setup(
    name=package_name,
    version='0.0.0',
    packages=find_packages(exclude=['test']),
    data_files=[
        ('share/ament_index/resource_index/packages',
            ['resource/' + package_name]),
        ('share/' + package_name, ['package.xml']),
    ],
    install_requires=['setuptools'],
    zip_safe=True,
    maintainer='wheeltec',
    maintainer_email='wheeltec@todo.todo',
    description='TODO: Package description',
    license='TODO: License declaration',
    tests_require=['pytest'],
    entry_points={
        'console_scripts': [
            # 前面的是节点名字，后面的是节点路径
            "my_publisher_node=robotpy.my_publisher_node:main",
            "my_subscriber_node=robotpy.my_subscriber_node:main",
        ],
    },
)

执行：

# 执行发布者
ros2 run robotpy my_publisher_node

# 执行订阅者
ros2 run robotpy my_subscriber_node

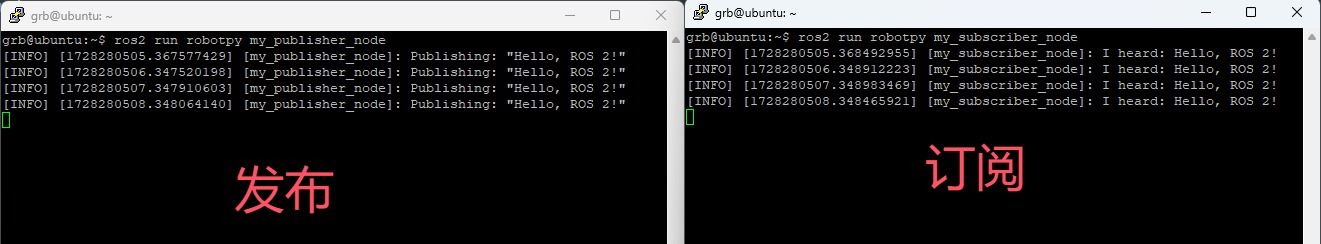

效果如下：
