IOTGateway 新增驱动
1、资料
教程：http://iotgateway.net/docs/iotgateway-intermediate/driver/drvier
2、新建项目

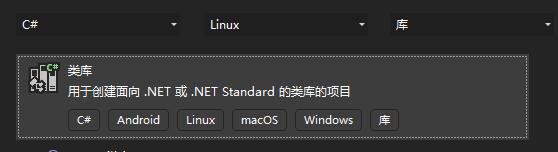

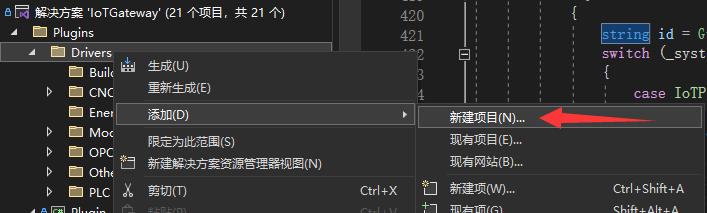

在解决方案->Drivers文件夹，右键添加->新建项目->C#类库

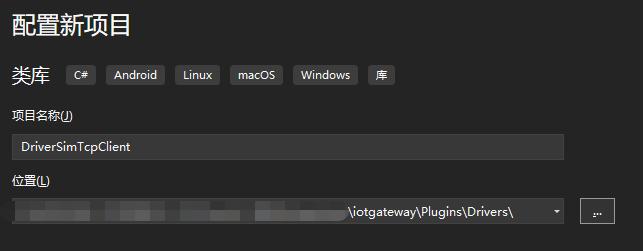

项目名DriverSimTcpClient，放在iotgateway\Plugins\Drivers路径下

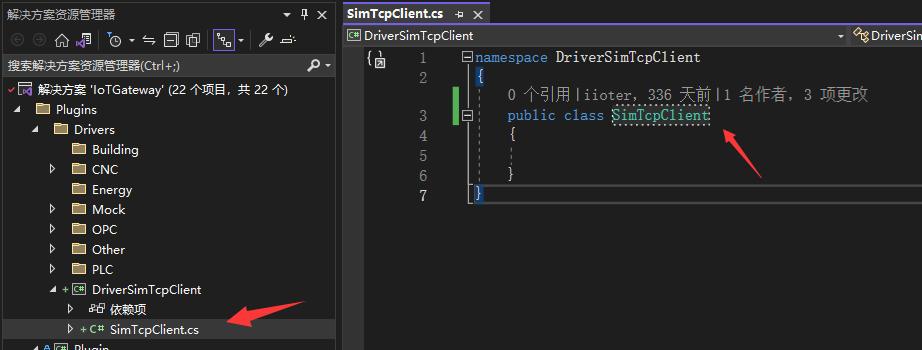

修改Class1为SimTcpClient
双击项目，修改配置
iotgateway\Plugins\Drivers\DriverSimTcpClient\DriverSimTcpClient.csproj
<Project Sdk="Microsoft.NET.Sdk">
<PropertyGroup>
<TargetFramework>net6.0</TargetFramework>
<OutputPath>../../../IoTGateway/bin/Debug/net6.0/drivers</OutputPath>
<CopyLocalLockFileAssemblies>true</CopyLocalLockFileAssemblies>
<ImplicitUsings>enable</ImplicitUsings>
<Nullable>enable</Nullable>
</PropertyGroup>
<ItemGroup>
<PackageReference Include="SimpleTCP.Core" Version="1.0.4" />
</ItemGroup>
<ItemGroup>
<ProjectReference Include="..\..\PluginInterface\PluginInterface.csproj" />
</ItemGroup>
</Project>
3、编写项目代码
基本框架
using Microsoft.Extensions.Logging;
using PluginInterface;
namespace DrivceDemo
{
/// <summary>
/// 基本框架
/// </summary>
[DriverSupported("DemoDevice")]
[DriverInfo("demo", "V1.0.0", "Copyright IoTGateway© 2023-07-14")]
public class demo : IDriver
{
#region 配置参数
[ConfigParameter("设备Id")] public string DeviceId { get; set; }
[ConfigParameter("IP地址")] public string IpAddress { get; set; } = "127.0.0.1";
[ConfigParameter("端口号")] public int Port { get; set; } = 6666;
[ConfigParameter("超时时间ms")] public int Timeout { get; set; } = 300;
[ConfigParameter("最小通讯周期ms")] public uint MinPeriod { get; set; } = 3000;
#endregion
/// <summary>
/// 判断连接状态
/// </summary>
public bool IsConnected
{
get
{
return true;
}
}
public ILogger _logger { get; set; }
private readonly string _device;
public demo(string device, ILogger logger)
{
_device = device;
_logger = logger;
_logger.LogInformation($"Device:[{_device}],Create()");
System.Diagnostics.Debug.WriteLine($"{DateTime.Now.ToString("yyyy-MM-dd hh:mm:ss:fff")} 初始化");
}
/// <summary>
/// 连接
/// </summary>
/// <returns></returns>
public bool Connect()
{
System.Diagnostics.Debug.WriteLine($"{DateTime.Now.ToString("yyyy-MM-dd hh:mm:ss:fff")} 连接");
return true;
}
/// <summary>
/// 读取
/// </summary>
/// <param name="ioarg"></param>
/// <returns></returns>
[Method("方法中文名", description: "方法描述")]
public DriverReturnValueModel Read(DriverAddressIoArgModel ioarg)
{
var ret = new DriverReturnValueModel { StatusType = VaribaleStatusTypeEnum.Good };
System.Diagnostics.Debug.WriteLine($"{DateTime.Now.ToString("yyyy-MM-dd hh:mm:ss:fff")} 读取");
return ret;
}
/// <summary>
/// 断开
/// </summary>
/// <returns></returns>
public bool Close()
{
System.Diagnostics.Debug.WriteLine($"{DateTime.Now.ToString("yyyy-MM-dd hh:mm:ss:fff")} 断开");
return true;
}
/// <summary>
/// 释放
/// </summary>
public void Dispose()
{
System.Diagnostics.Debug.WriteLine($"{DateTime.Now.ToString("yyyy-MM-dd hh:mm:ss:fff")} 释放");
}
/// <summary>
/// 写入
/// </summary>
/// <param name="requestId"></param>
/// <param name="method"></param>
/// <param name="ioarg"></param>
/// <returns></returns>
public async Task<RpcResponse> WriteAsync(string requestId, string method, DriverAddressIoArgModel ioarg)
{
RpcResponse rpcResponse = new() { IsSuccess = false, Description = "设备驱动内未实现写入功能" };
System.Diagnostics.Debug.WriteLine($"{DateTime.Now.ToString("yyyy-MM-dd hh:mm:ss:fff")} 写入");
return rpcResponse;
}
}
}启动流程：释放->初始化
关闭流程：断开->释放->初始化
官方例子
using PluginInterface;
using SimpleTCP;
using Microsoft.Extensions.Logging;
namespace DriverSimTcpClient
{
[DriverSupported("SimTcpServerDevice")]
[DriverInfo("SimTcpClient", "V1.0.0", "Copyright IoTGateway© 2022-06-04")]
public class SimTcpClient : IDriver
{
/// <summary>
/// tcp客户端
/// </summary>
private SimpleTcpClient? _client;
/// <summary>
/// 缓存最新的服务器返回的原始数据
/// </summary>
private byte[]? _latestRcvData;
public ILogger _logger { get; set; }
private readonly string _device;
#region 配置参数
[ConfigParameter("设备Id")] public string DeviceId { get; set; }
[ConfigParameter("IP地址")] public string IpAddress { get; set; } = "127.0.0.1";
[ConfigParameter("端口号")] public int Port { get; set; } = 6666;
/// <summary>
/// 为了演示枚举类型在web端的录入，这里没用到 但是你可以拿到
/// </summary>
[ConfigParameter("连接类型")]
public ConnectionType ConnectionType { get; set; } = ConnectionType.Long;
[ConfigParameter("超时时间ms")] public int Timeout { get; set; } = 300;
[ConfigParameter("最小通讯周期ms")] public uint MinPeriod { get; set; } = 3000;
#endregion
public SimTcpClient(string device, ILogger logger)
{
_device = device;
_logger = logger;
_logger.LogInformation($"Device:[{_device}],Create()");
}
/// <summary>
/// 判断连接状态
/// </summary>
public bool IsConnected
{
get
{
//客户端对象不为空并且客户端已连接则返回true
return _client != null && _client.TcpClient != null && _client.TcpClient.Connected;
}
}
/// <summary>
/// 进行连接
/// </summary>
/// <returns>连接是否成功</returns>
public bool Connect()
{
try
{
//进行连接
_client = new SimpleTcpClient().Connect(IpAddress, Port);
_client.DataReceived += Client_DataReceived;
}
catch (Exception)
{
return false;
}
return IsConnected;
}
/// <summary>
/// 收到服务端数据
/// </summary>
/// <param name="sender"></param>
/// <param name="e"></param>
private void Client_DataReceived(object? sender, Message e)
{
//如果收到的数据校验正确，则放在内存中
if (e.Data.Length == 8 && e.Data[0] == 0x08)
_latestRcvData = e.Data;
}
/// <summary>
/// 断开连接
/// </summary>
/// <returns>断开是否成功</returns>
public bool Close()
{
try
{
if (_client != null)
{
_client.DataReceived -= Client_DataReceived;
//断开连接
_client?.Disconnect();
}
return !IsConnected;
}
catch (Exception)
{
return false;
}
}
/// <summary>
/// 释放
/// </summary>
public void Dispose()
{
try
{
//释放资源
_client?.Dispose();
}
catch (Exception)
{
}
}
/// <summary>
/// 发送数据
/// </summary>
private readonly byte[] _sendCmd = { 0x01, 0x02, 0x03, 0x04 };
/// <summary>
/// 解析并返回
/// </summary>
/// <param name="ioarg">ioarg.Address为起始变量字节编号;ioarg.ValueType为类型</param>
/// <returns></returns>
[Method("读模拟设备数据", description: "读模拟设备数据,开始字节和长度")]
public DriverReturnValueModel Read(DriverAddressIoArgModel ioarg)
{
var ret = new DriverReturnValueModel { StatusType = VaribaleStatusTypeEnum.Good };
ushort startIndex;
//判断地址是否为整数
if (!ushort.TryParse(ioarg.Address, out startIndex))
{
ret.StatusType = VaribaleStatusTypeEnum.Bad;
ret.Message = "起始字节编号错误";
return ret;
}
//连接正常则进行读取
if (IsConnected)
{
try
{
//发送请求
_client?.Write(_sendCmd);
//等待恢复，这里可以优化
Thread.Sleep(Timeout);
if (_latestRcvData == null)
{
ret.StatusType = VaribaleStatusTypeEnum.Bad;
ret.Message = "没有收到数据";
}
else
{
//解析数据，并返回
switch (ioarg.ValueType)
{
case DataTypeEnum.UByte:
case DataTypeEnum.Byte:
ret.Value = _latestRcvData[startIndex];
break;
case DataTypeEnum.Int16:
var buffer16 = _latestRcvData.Skip(startIndex).Take(2).ToArray();
ret.Value = BitConverter.ToInt16(new[] { buffer16[0], buffer16[1] }, 0);
break;
case DataTypeEnum.Float:
//拿到有用的数据
var buffer32 = _latestRcvData.Skip(startIndex).Take(4).ToArray();
//大小端转换一下
ret.Value = BitConverter.ToSingle(
new[] { buffer32[3], buffer32[2], buffer32[1], buffer32[0] }, 0);
break;
}
}
}
catch (Exception ex)
{
ret.StatusType = VaribaleStatusTypeEnum.Bad;
ret.Message = $"读取失败,{ex.Message}";
}
}
else
{
ret.StatusType = VaribaleStatusTypeEnum.Bad;
ret.Message = "连接失败";
}
return ret;
}
public async Task<RpcResponse> WriteAsync(string requestId, string method, DriverAddressIoArgModel ioarg)
{
RpcResponse rpcResponse = new() { IsSuccess = false, Description = "设备驱动内未实现写入功能" };
return rpcResponse;
}
}
public enum ConnectionType
{
Long,
Short
}
}

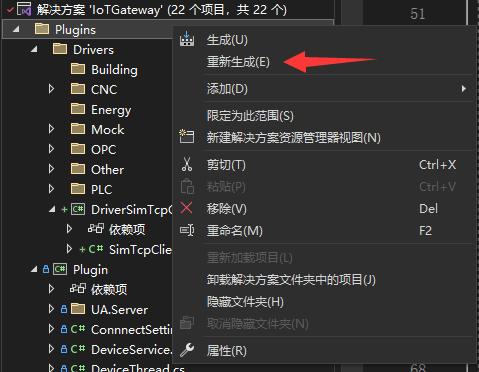

右键Plugins文件夹，然后重新生成，这一步不能少。
4、注册驱动
生成DriverSimTcpClient 项目
iotgateway\IoTGateway\bin\Debug\net6.0\drivers\net6.0路径下可以看到生成了DriverSimTcpClient.dll
运行IoTGateway，访问本地518端口
添加驱动

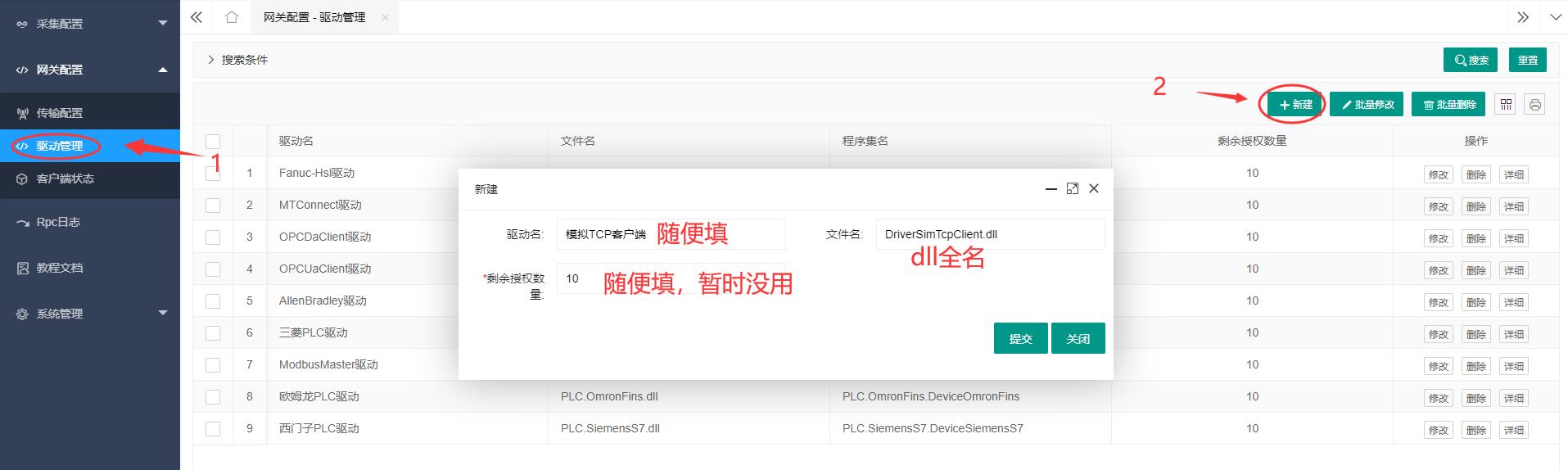

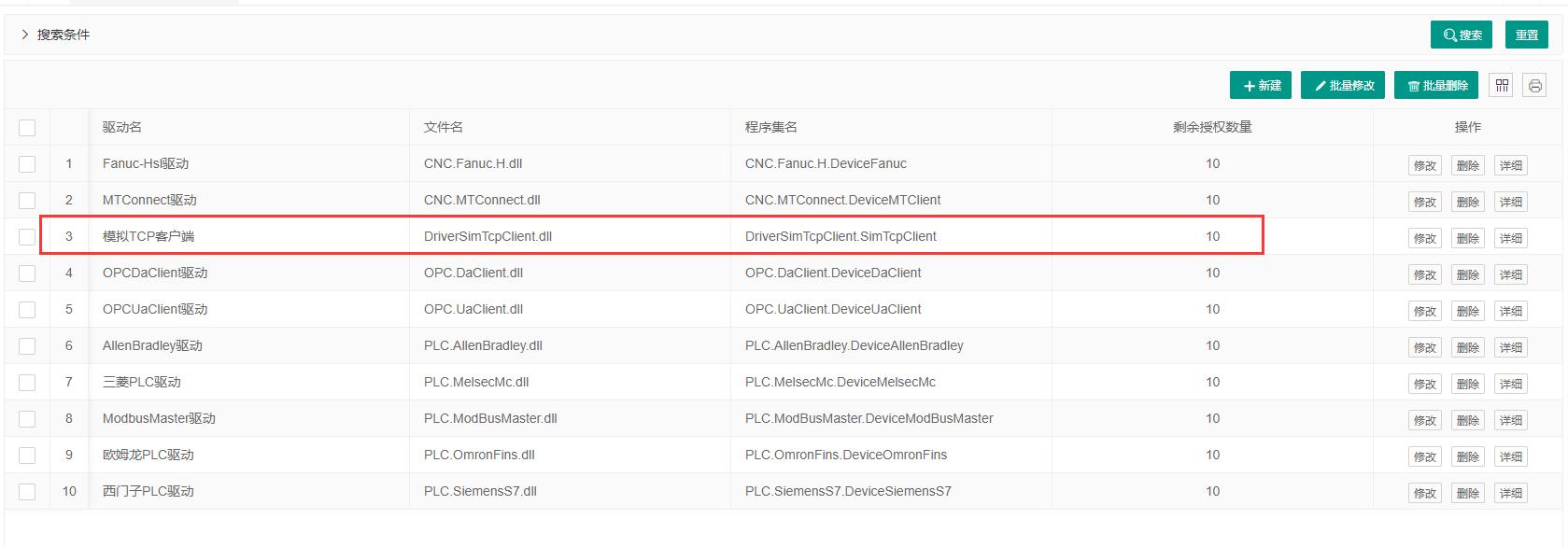

网关配置->驱动管理->新建
添加结果如下
5、创建设备

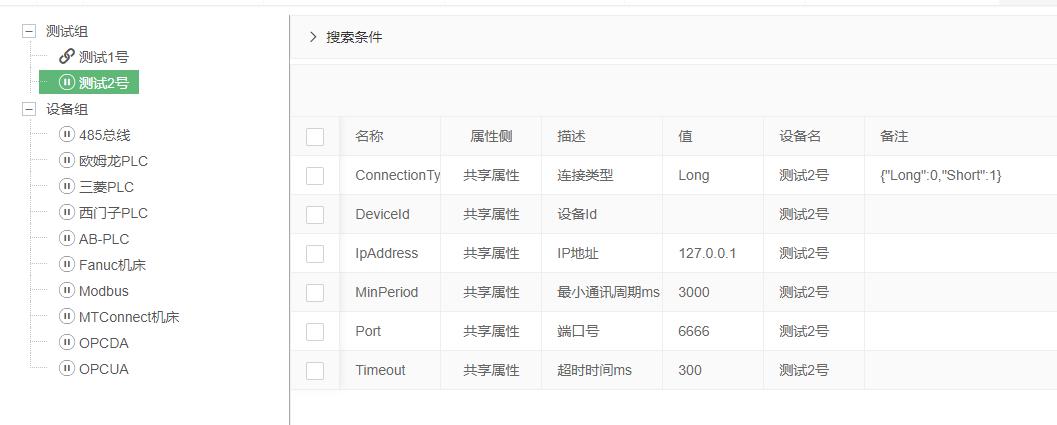

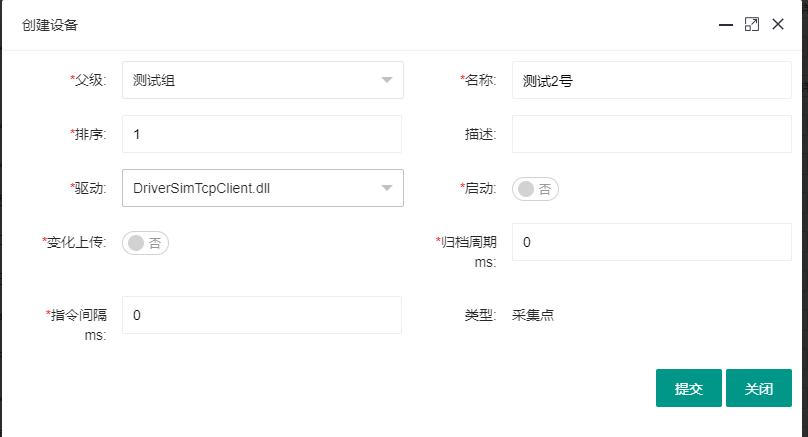

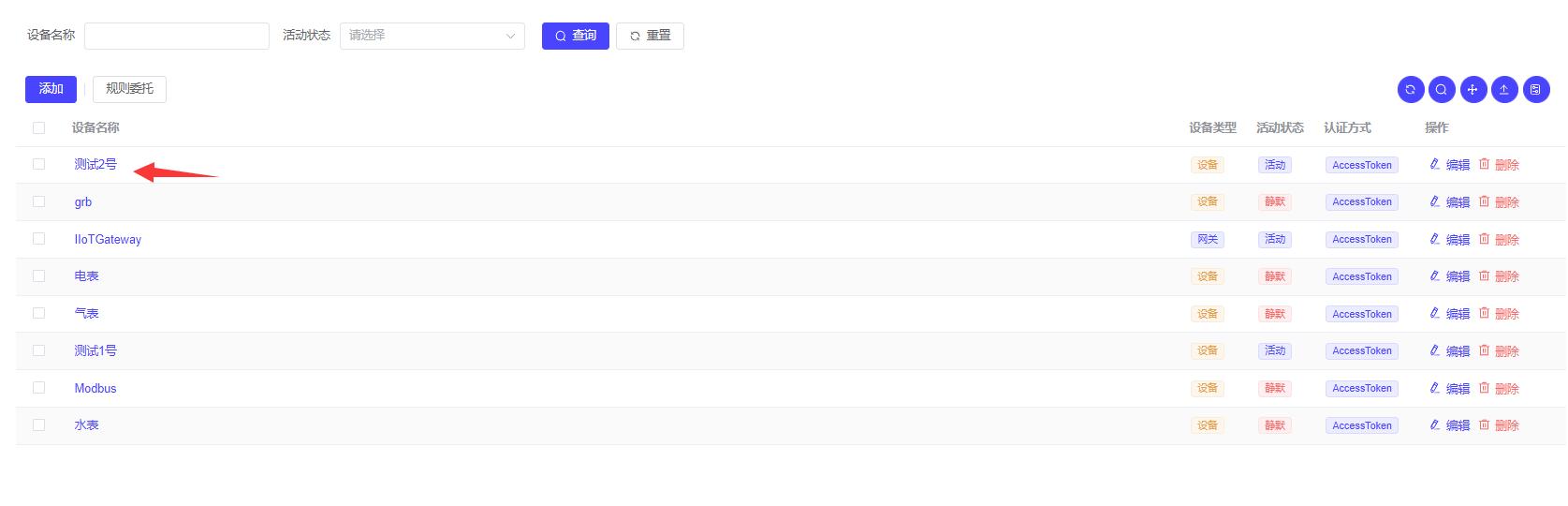

采集配置->设备维护->添加设备，在测试组，添加个测试2号
6、添加变量
1、采集配置->变量配置

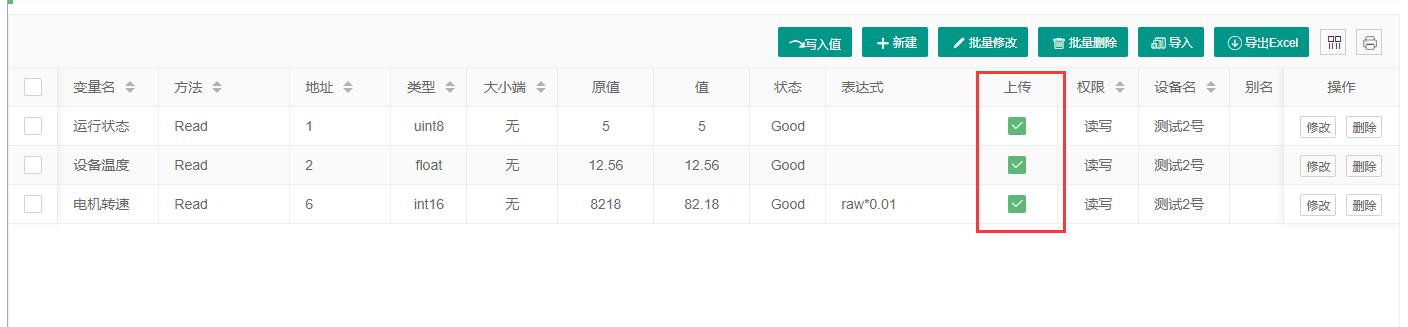

手动添加或者通过excel批量导入下面变量
变量名 | 方法 | 地址 | 类型 | 表达式 | 设备名 |
运行状态 | Read | 1 | uint8 |
| 模拟设备 |
设备温度 | Read | 2 | float |
| 模拟设备 |
电机转速 | Read | 6 | int16 | raw*0.01 | 模拟设备 |
7、开始采集
通讯配置按默认的。

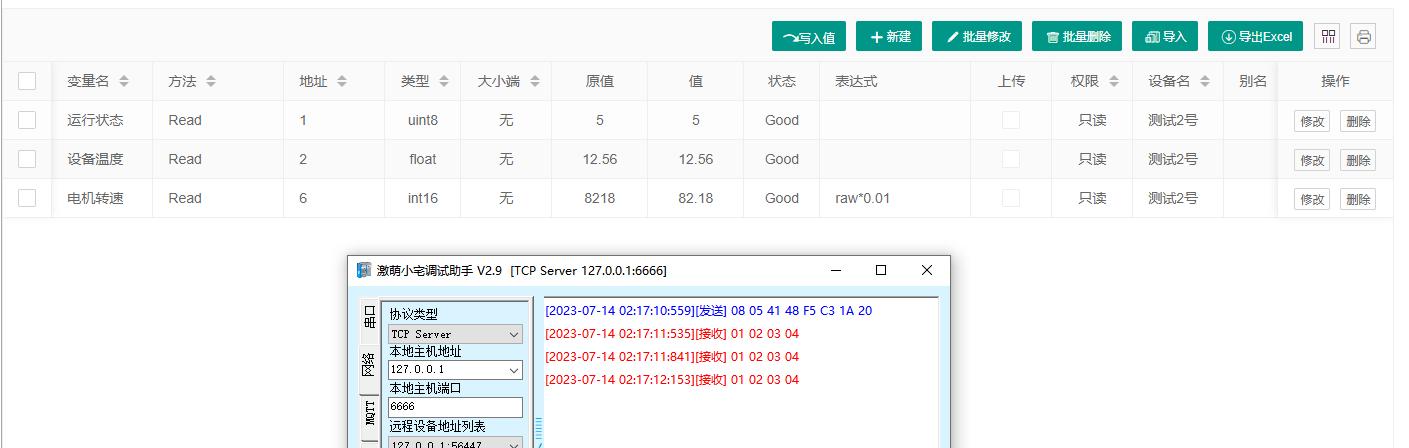

优先启动TcpServer工具
然后在设备维护中，启动设备
发送数据包：08 05 41 48 F5 C3 1A 20
包头：08
运行状态：05
设备温度：41 48 F5 C3
电机转速：1A 20
注意：
1、每次新增一个驱动时，都必须重启IOTSharp和IoTGateway，并且要先启动IOTSharp，再启动IoTGateway。顺序不能反了。否则设备将无法在IOTSharp中显示出来。
2、设备变量必须开启上传功能，否则，无法订阅到消息。
未开启上传功能，订阅的消息是空的。

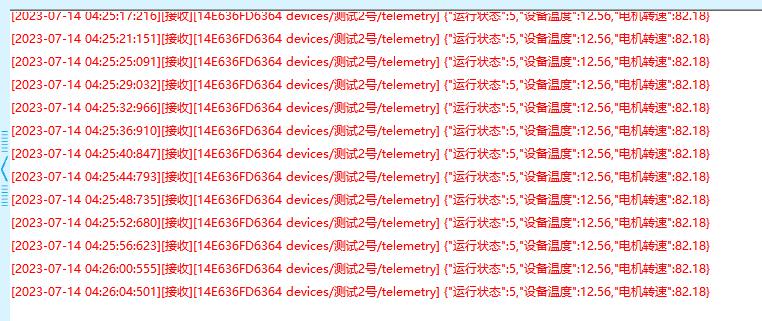

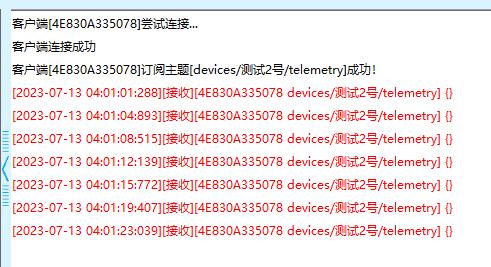

成功订阅，消息如下：
